Part # 70201002-008
Wunderlich Engine Protection Bar for installing Fairing Protection Bar
Available in: Black, Red or White

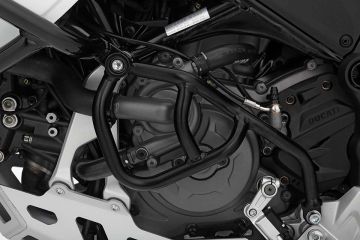

The development of this engine protection bar concept brings maximum protection to the forefront. The geometry of the compact protection bar primarily reliably protects the exposed water pump together with the hoses. But it also protects the clutch housing as well as the clutch’s slave cylinder. The engine protection bar nestles in closely against the aggregate and its compact structure also offers additional stability and stiffness. The bar for the left side of the engine is solidly bolted to the frame at two select screw points. The torques and forces that arise during a crash or fall are thereby distributed across two points. This reduces peak loads caused by external forces.

The motor protection bar reduces the risk of damage in case of falling over or a crash. A failure of the water pump and its connections in particular without fail means that the trip can be over.

The assembly is easy.

Note on installation: The installation of the engine protection bar for mounting with the fairing protection bar can only be done in combination with our fairing protection bar #70210002.  The corresponding assembly set is included. If you would like to mount the engine protection bar without the fairing protection bar, please use the engine bar solo #70200002.

The facts

Function

• Perfect protection for the left side of the engine, especially for the water pump, but also for the clutch
• Assembly of this engine protection bar is only possible in combination with our fairing protection bar #70210002
• Reduction of arising force/torque peaks by distributing these over two attachment points
• No restriction of ride height
• High component rigidity thanks to the compact design – low weight
• Detailed yet easy-to-understand instructions
• Simpler installation thanks to the precise fit accuracy
• Delivery includes installation material for the combined assembly with the fairing protection bar

Technical information

• Material: High-quality stainless steel with high tensile strength and break elongation, precision formed on CNC pipe bending machines and clean welded, black powder-coated
• Dimensions
  • Pipe diameter 20 mm
• Colour
  • Black, Red or White


Your Wunderlich benefits

• Stainless steel
• Made in Germany
