Part # 70325001-001
Wunderlich Vario Pivot Set

Wunderlich Vario Pivot Set

Our Vario rest system is the ultimate solution when it comes to  ergonomic adjustable footrests. With an adjustment range of 100 mm diameter, it leaves nothing to be desired. No matter whether you've got big feet or small ones, whether you want to increase the lean angle freedom or just comfortably relieve the knee angle. The eight different adjustment options within a full 360 degrees ensures enormous flexibility. This ergonomic adjustment foot peg system is available for both rider and passenger.

All parts are made from high-solidity aluminum and anodized in silver or black. See related products for other color option

The Vario joint, the Vario adapter and the desired footrest for each side are all required for complete assembly.

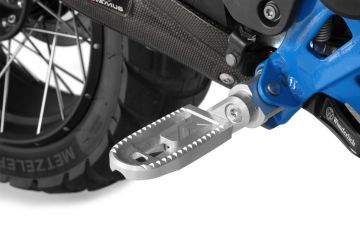

The base of the system is the silver or black Vario Pivot Set that matches the corresponding vehicle model and available in Rider or Passenger Version, with the joint being mounted on the footrest bracket in place of the footrest.

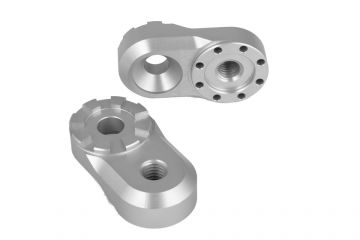

A Vario adapter is mounted on the Vario Joint, the Vario adapters are available in the following lengths and colors: See Related Products

• 23 mm 25912000 in silver
• 23 mm 25912002 in black
• 30 mm 25912030 in silver
• 30 mm 25912032 in black

• 50 mm 25912050 in silver
• 50 mm 25912052 in black

All 3 lengths can be attached in eight different directions in a 360 degree radius

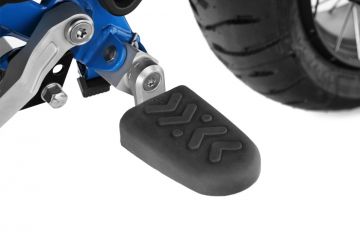

The Foot Rest is now attached to the adapter, which can also be fitted with a rubber insert (item no. 25913002). See Recommended Accessories

NOTE:

• The Vario Pivot Set will place the foot position slightly outboard from stock position
• Depending on Model/Year, there may be accessories available to assist in Rider comfort: Brake Lever Enlarger, Brake Lowering Kit, or Gear Shift Enlarger
