Part # 36083000

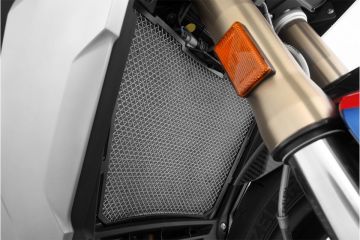

Wunderlich Oil Cooler Guard

To avoid damage and capture dirt before it affects the oil cooler, we recommend our oil protection grille, which consists of a fine meshed, tough and resistant stainless steel grille. It reliably protects the oil cooler without impacting the air flow.

To ensure an oil cooler can deliver optimal cooling, it needs optimal air flowing through from the air flow as you ride. This is why it’s located on the bottom end of the fairing, beneath the water cooler. This has a serious disadvantage though: the oil cooler sits directly behind the front wheel and therefore right in the path of whirled up dirt, stones and foreign bodies that hit the delicate fins of the oil cooler. Dirt and insects clog up the cooler and reduce the cooling capacity, such as fins bent by stone impacts. In the worse case, foreign bodies with sharp edges can cause damage that lead to leaks. With a damaged cooler, it is no longer possible to continue driving and dirt reduces the cooling capacity. The Wunderlich air cooler protection is the solution to these problems.

Function

• Refined, reliable protection of the vulnerable radiator network for the oil cooler
• Prevents damage and heavy dirt from foreign bodies thrown up by the front wheel
• Prevents the loss of cooling in the oil cooler without reducing the air flow
• Highly solid, resistant welded stainless steel grille with sturdy aluminum frame bonding
• Robust connection technology between grille and frame
• Includes all mounting hardware

Technical information

• Grille material: Stainless steel grille, carefully welded and crafted to be highly mechanically resistant
• Frame material: Aluminum, high-quality, 2 mm profile thickness, black anodized
• Component dimensions: Width 245 mm, Height 120 mm

Features

• Wunderlich premium product
• Produced in small batches
• Hand crafted
• Made in Europe

Tip: Prior to installation carefully clean the cooler by hand, this must be done with extreme care to ensure that the radiator network doesn't get damaged. Insects and other grime which has accumulated can be easily removed with a damp cloth. Place the damp cloth on the grille until the dirt is loosened by the moisture and can be easily wiped away with no residue.

  Wunderlich
  36083-000
